HP Design-jet 500/510 Plotter/printer Repair, 500/510 Service Error Code Repairs and Designjet 500 Repair in Los Angeles, Orange County, Riverside and San Bernardino Ca.

Same-day DesignJet 500/510 repair and 500 plotter maintenance service in Southern California!

We specialize on HP Design-Jet 500/510 repair and onsite service in Los Angeles and Orange County with image defects, error messages, error codes and system errors. We provide fast onsite Design Jet 500 and 510 plotter maintenance service in Southern California. We have the knowledge to repair HP Design Jet 510 and 500 plotters on the first visit. We stock design jet 500 print-heads to provide efficient plotter repair st your site.

We offer 6 months warranty on all HP plotter replacement parts to provide 500/510 plotter repair service in Southern California. We carry most common HP 500 and 510 plotter parts to solve Design-Jet hardware failures and numerical error code repairs.

We offer HP 500/510 printer repair with broken belts and 86:01, 21:10 error, 21:13 error, 11:11 error, 08:01 error, 79:04 error messages. Our DesignJet 500/510 service technicians are best at replacing broken belts, ink tubing system, purge ink tubing system, replace carriage Assembly, trailing cable and replacing service station. Our team of plotter technicians come prepared to fix your DesignJet 500, 510, 800, 1050, 1055, 4000, 4500, T1100, T1200, T1300, T610, T770, T790, Z6100, Z6200, Z5200 plotters on the first visit.

Top 10 HP Design Jet 500/510 Plotter System Error Code Repairs in Southern California!

HP Designjet 500 repair as well as 510 plotter service with error codes!

  • System error 02:13 – Carriage failure
  • System Error 05:10 – Formatter or HPGL/2 Card failure
  • System Error 11:11 – Bad trailing cable there are two sizer 24 inch and 42 inch
  • System Error 21:10 – Bad service station we have it in stock
  • System Error 21:11- service Station/Aerosol Fan cannot be detected
  • System Error 22:10 – Ink Supply Station failure
  • System Error 41:10 – Paper axis motor failure
  • System Error 70:04 – Firmware error, it can be a hardware failure call (800) 815-2737
  • System Error 81:01 – Hardware error place a service call we know it.
  • System Error 86:01 paper jam error check the encoder strip, carriage call (800)815-2737
DesignJet 500 print-head

We Specialize on HP Designjet 500/510 Plotter Repair in Los Angeles and Orange County!

Warranty and out of warranty design jet repairs and services in LA/OC

We provide wide format Design Jet 500 and 510 plotter repair not covered under  HP warranty or maintenance agreements. Does your Design Jet 500 need repair? We provide out of warranty plotter repair.
All Designjet 500 and 500PS repair and service parts are compatible,  the only difference is the plotter sizes. The difference between Design-Jet 500 24 inch and 42 inch plotter is the trailing cable, carriage belt, interconnect cable and encoder strip. These Design Jet plotters have different main due to the postscript model but they use same mechanical components.

Stocking DesignJet plotter carriage belts allow us to provide fast on-site Design Jet printer service and plotter repair at your site quickly. We stock belt kits for design jet Design Jet 500 24-inch C7769B, C7769BR, C7769C, C7769CR, Design-Jet 500 42-inch carriage belts C7770B, C7770C, C7770CR and C7770BR. Carriage belt kits in stock for Design Jet 800 42-inch models C7780B, C7780BR, C7780C and C7780CR as well as Design-Jet 800/800ps 24” belt kits for C7779C, C7779CR, C7779B and C7779BR.

Same Day Service on Designjet 500/510 Plotter System Error Code Repairs in Southern California

DesignJet 500/510 parts in stock to provide fast onsite plotter service and repairs

  • DesignJet 500/510/800 (ISS) Ink Supply Station (New)
  • Design Jet 500/800/510 service station (New)
  • Design-Jet 500, 510, 800 Carriage Assembly (New only)
  • design jet 500 / 510 / 800 42” Carriage Belt
  • design-jet 500 / 510 / 800 24” Carriage Belt
  • Design Jet 500 / 510 / 800 42” Ink Tubing System (New)
  • Designjet 500 / 510 / 800 24” Ink Tubing System (New)
  • Design-jet 500/510/800 Paper Cutter
  • design jet 500 / 800 24″ Trailing Cable
  • Designjet 500 / 800 42″ Trailing Cable
  • Designjet 500 / 510 / 800 24″ Encoder Strip
  • Designjet 500 / 510 / 800 42″ Encoder Strip
  • Designjet 500/510/800 Drive Roller Encoder Sensor (new)

Designjet 500/510 Plotter Service Includes Free Cleaning, Lubricating the Rails and Print Head Calibration During the Plotter Repair!

What is included in our HP DesignJet 500/510 plotter cleaning and maintenance service?

  • Clean Plotter Carriage Rails.
  • Lubricate the Plotter Carriage Rails.
  • Cleaning the plotter Drive Roller
  • Encoder strip cleaning and inspection.
  • Inspect and Clean the Platen Assembly.
  • Clean the entire Design Jet plotter.
  • Calibrate the print head after replacing the belt.
  • Lubricate the plotter rails after the belt is installed
  • Calibrate the plotter colors after the repair is done.
  • Print plotter quality test printout.

We Specialize on 42" and 24" Designjet 500/510 Plotter Repairs in Southern California!

We provide FREE cleaning on every Design Jet 500/510 repair in Southern California!

HP Design Jet 500/510 Plotter we repair by Model Numbers
HP DesignJet 510 Plotter Repair (42-inch) C7770C, C7770CR
HP DesignJet 510 Plotter Repair (24-inch) C7769C, C7769CR
HP DesignJet 500 Plotter Repair (24-inch) C7769B, C7769BR

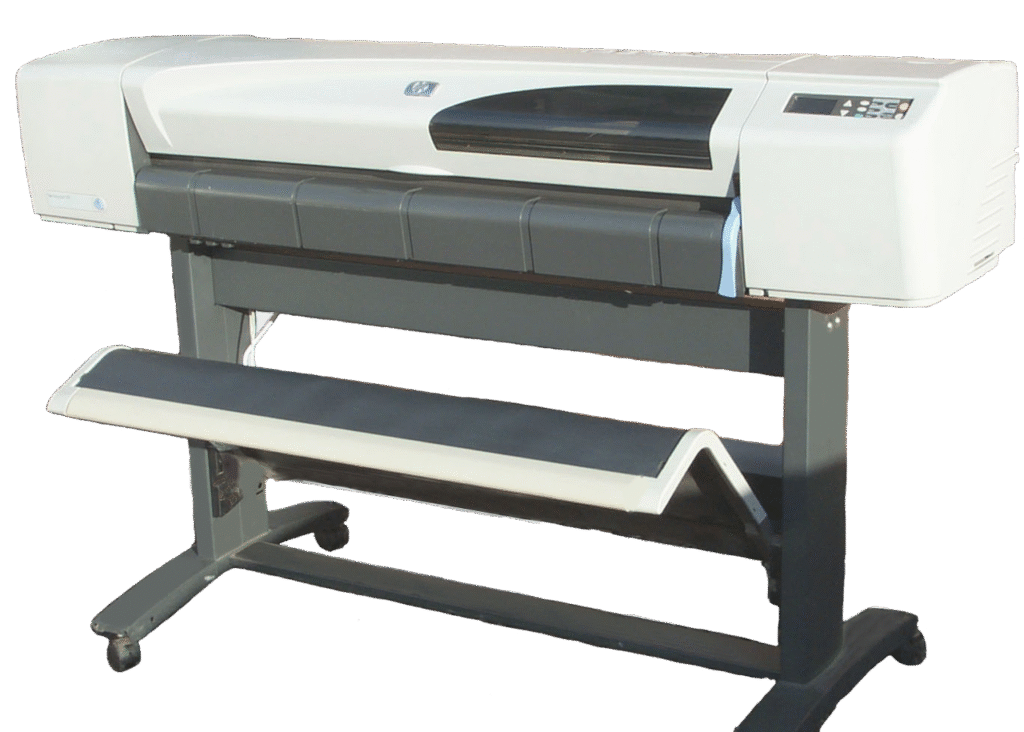

HP DesignJet 500 Plotter Repair (42-inch) C7770B, C7770BR

Hewlett Packard 500/510 42 Inch as Well as 24 Inch Plotter/printer Repairs in Southern California!

DesignJet 500 series plotter models we repair and service in Southern California!

HP Design-Jet 500/510 plotter description HP DesignJet 500/510 plotter models
HP Designjet 500 Plotter Repair (24″/A1) C7769B | C7769BR
HP Designjet 500 Plotter Repair (42-inch) C7770B | C7770BR
HP DesignJet 500PS Plotter Repair C7769C | C7769CR | C7770C | C7770CR
HP Designjet 510 Plotter Repair (24″) CH336A
HP Designjet 510 Plotter Repair (42″) CH337A

We Offer Genuine HP Designjet 500/510 Plotter Repair Parts in Southern California!

HP Design Jet Plotter Error Codes Introduction:

On design-jet 500 printer model system error codes consist of four digits that explain which component or system is failing and what action should be taken to correct the problem. The information below provides an explanation of the error and the recommended action to be taken.

Continuable and non-continuable HP DesignJet error codes

Some HP 500 error codes are continual, which means that it is possible to press the Enter key on the front panel and to continue working with the printer. Non-contain

Design Jet 500 Error Messages HP Design Jet 500/510 Plotter Error Codes
HP DJ 500 system error 01:10 A problem with the Electronics module has occurred.
HP 500 System error 01:11 The electronics module has detected a connection problem with the cooling fan.
HP 500 System error 01:12 The EEROM is not configured correctly.
HP DJ 500 System error 01:13 A problem with the Electronics module has occurred.
System error 02:10 A problem has occurred with the carriage assembly
System error 02:13 A problem has occurred with the carriage assembly.
System error 03:10 A problem has occurred with the printers power supply.
System error 04:11 Jet direct network card not detected.
System error 05:09 (DJ 500 only) Formatter installed instead of HP-GL/2 accessory card.
System error 05:10 (DJ 800 only) Formatter card failure, or Formatter card not detected
System error 05:10 (DJ 500 only) HP-GL/2 accessory card failure
System error 06:03 (DJ 800 only) Hard disk error
System error 08:11 The front panel cannot be detected.
System error 11:11 The trailing cable is poorly connected
System error 11:13 Problem with setting the voltage of the printheads
System error 12:11 A short has been detected in the carriage assembly.
System Error 17:11(DJ 500 only) A problem has been detected while initializing.
System error 21:10 A problem has been detected with the Service Station assembly.
System error 21:11 A problem has been detected with the Service Station assembly.
System error 22:10 A problem has been detected with the Ink Supply Station.
System error 41:10 A problem has been detected with the Paper-Axis motor
System error 41:13 An error in the paper-axis motor encoder quadrature has occurred.
System error 42:10 A problem has occurred with the Scan-Axis motor.
System error 43:10 A problem has occurred with the Vacuum fan.
System error 43:11 The Vacuum fan is not detected.
System error 55:11 A problem with the line sensor has occurred.
System error 56:10 Drive roller encoder sensor error.
System error 56:13 An error in the drive roller encoder sensor quadrature has occurred.
System error 61:04 Firmware error.
System error 61:05 The printer was not able to process a job that was sent.
System error 62:03 Parallel port communication problem
System error 63:03 LAN card communication problem.
System error 64:03 USB port communication problem.
System error 64:04 Firmware error (USB port).
System error 65:03 Generic input/output port communication problem.
System error 71:04 Problem allocating memory.
System error 71:06 Out of memory problem.
System error 72:04 Problem in the scan-axis (firmware error).
System error 73:04 Server error.
System error 79:04 Miscellaneous firmware error.
System error 81:01 Paper-axis shutdown.
System error 81:11 Paper-axis shutdown (during the paper advance test).
System error 85:10 Paper-axis shutdown (during the paper advance test).
System error 86:01 Carriage-Axis shutdown.
System error 86:11 Carriage-axis shutdown (during the carriage movement test).
System error 86:13 Carriage-Axis shutdown (firmware error).
System error 87:13 Unable to read the carriage encoder sensor.
System error 93:10 Ink System startup failed.

We Offer Same Day Designjet 500 Repair and HP 510 Service with Belt Kit Replacement and Lubrication!

We install genuine HP belt kit when repairing DesignJet 500 24 inch and 42 inch plotters.  After replacing the  Design-Jet 500 belt kit we lubricate the carriage rail to prolong the life of the new belt. Lubricating the carriage rails on DesignJet 500/510 keeps the carriage assembly moving freely and avoid the belt to break prematurely.
We stock DesignJet 500 carriages Belts, Hard Drive, trailing cables, service station, encoder strip, ink tubing systems, carriage assembly and print heads. We provide fast onsite plotter service in Southern California with multi-point plotter cleaning on every HP DJ 500 plotter repair. Our Design Jet 500 repair team carry most common plotter parts for design-jet 500ps, 500 and 510 plotters.
