Certified HP DesignJet Z6100/Z6100ps plotter repair with carriage jam error and numerical error code failure in Southern California!

We offer HP Z6100 plotter repair in Southern California with same day onsite DesignJet Z6100/Z6100ps plotter service and plotter repair in Los Angeles, Orange County and San Bernardino. We specialize on HP design-Jet Z6100/Z6100ps wide format printer service error codes as well as plotter numerical error code failures in Southern California. Out technicians provide Z6100 plotter repair services on the first visit.
We specialize on HP DesignJet Z6100 numerical error code 11:10 trailing cable error, 21:03, 21:13 service station error, 05.1:10 cpu fan stopped ot burnt, 86:01 paper jam error carriage belt wear or broken belt, error 64.1:01 the printer does not recognize the USB Hard Disk Drive and error 55:10 line sensor communication failure. Error 86:01 same as 87:01 42 inch or 60 inch encoder strip getting dirty. Encoder Strip becomes unreadable clean it, if problem persists replace it. This error code is caused by worn out belt 42 inch and 60 inch carriage belt clean carriage rails and lubricate it.
HP DesignJet Z6100/Z6100ps plotter repair, HP 4000/4500 plotter repair, HP Designjet 1050c/1055cm repair, DesignJet 500/800 plotter repair, HP DesignJet 5000/5500 plotter repair, DesignJet 500, 500ps and 510 plotter repair and HP Design-jet 800, 800ps plotter repair. We specialize on DesignJet T1100, 1200/1300 plotter repair, Design Jet Z2100, Z3100, Z3200 and Z5200 plotter repair. We provide older DesignJet 430/450/455 plotter repair and DesignJet 700, 730, 750 and 755 plotter repair in Southenr Caifornia.
Our HP Z6100/Z6100ps plotter service technicians are highly trained to replace the broken belts, ink tubing system, purge the ink tubing system, carriage Assembly, trailing cable, service station and encoder strip during a DesignJet plotter repair. We stock most common Z6100/Z6100ps plotter service parts to provide same-day onsite service.
We provide DesignJet Z6100/Z6100ps plotter service, DesignJet 4000/4500 plotter service, 5000/5500PS plotter service, DesignJet 1050C/1055CM plotter service, DesignJet Z2100/Z3100 and Z3200 plotter service, DesignJet T100/T1200/T1300 and T2300 plotter service, Older DesignJet 430/450 and 455 plotter service, DesignJet 700, 750C and 755CM plotter service, DesignJet 500, 510 and 800PS plotter service in Southern California.

We Carry Design Jet Belt Kits to Provide Fast On-site Plotter Repair/service in Los Angeles and Orange County!

HP Design Jet plotter repair parts in stock to provide fast onsite Plotter repair/service Southern California!

We carry original HP design jet plotter belts and belt kits to repair your DesignJet 500/510, HP 800/800ps plotter repair with 24 inch and 42 inch belt kits, HP design Jet 5500/5000 plotter repair with 42 inch and 60 inch belt kits in stock, HP DJ 4000/4500 plotter repairs with 44 inch belt kits. HP designjet 1050c/1055cm plotter repair with 36 inch belt kit. HP designjet T100, 1200 and 1300 plotter repair with 24 and 44 inch belt kits.
Fast onsite DesignJet plotter belt kit replacement with flat rate labor on HP Z6100, Z6200 plotter repair with 44-inches and 60- inches belt replacement.HP Z2100, 3200 and 5200 plotter service with 24inch and 44 inch belt kits in Southern California. We also provide HP DesignJet 430/450/455 plotter repair with 24 and 36 inch belt kits in stock, HP Designjet 730, 750 and HP DJ 755 plotter repairs with 24 and 36 inch belt kits always in stock to provide fast onsite service in Los Angeles and Orange County.
We keep your design jet plotter printing trouble free with regular plotter service, we specialize on HP DesignJet plotter repair with hardware failures due to network setting or plotter driver. Our HP plotter technicians are experts on HP designjet plotter failures and error due to a bad hard drive, network cards and broken belts.
We provide DesignJet 500 plotter repair with broken carriage belts on 24-inch as well as Design-Jet 500 42 inch plotter. We stock carriage belts for HP Design Jet 800 24 inches and 42 inches. We have hard drives in stock to fix HP DesignJet 800 and 800ps plotters with 05:10 errors easily and quickly.

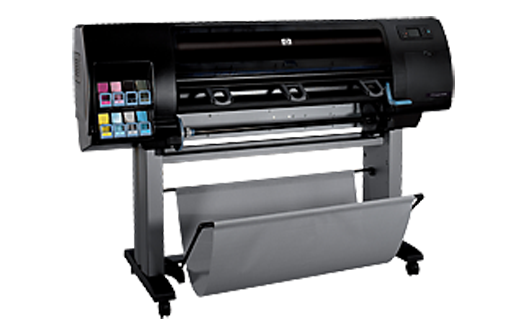

Design Jet Z6100 plotter

We Provide Onsite Service on HP Designjet 47:01, 47:10 and 47:03 System Error Codes on HP Designjet T and Z Series Plotters in Southern California!

We specialize on HP Designjet plotter system error code 47:01, 47:10 and 47:03 on the HP Designjet T610, T620, T1100, T1120, T1200, T770, T2300, T790, T1300 and Z2100, Z3100, Z3200, Z5200, Z6100 and Z6200 series plotters system error code indicates the starwheel motor has failed.

HP Designjet Plotter Service and Design Jet Printer Repair!

What is included on DesignJet maintenance service and plotter repairs?

Our Design-Jet plotter repair process includes plotter cleaning and 10 points inspection for worn out parts, Lubricating the rails, Inspecting the encoder strip, Run paper path test, calibrate the plotter and run the print head calibration test. Fast onsite wide format DesignJet 500/510/800 plotter repairs, Design Jet 1050/1055cm plotter repairs, HP 5000/5500 plotter repairs, HP design-jet 430/450 plotter repairs, DesignJet 750/755cm plotter repairs, DesignJet 4000ps/4500 plotter repairs, T1100, T1200, T1300 plotter repair and DesignJet Z2100/Z2200/Z2300 plotter repairs.

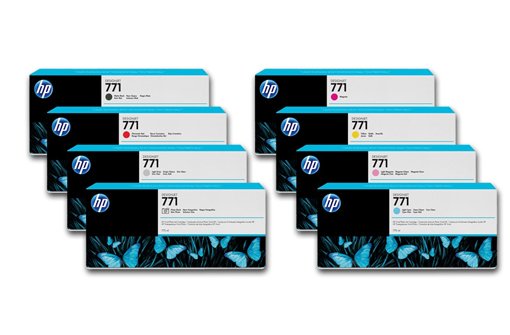

DesignJet Z6100- Z6200 Print-heads

Free Cleaning on Every Designjet Plotter Repair in Southern California!

What is included in cleaning and maintenance service on HP DesignJet plotter?

  • Clean HP DesignJet Plotter Carriage Rails.
  • Lubricate the HP Design-Jet Plotter Carriage Rails.
  • Cleaning the HP DesignJet Drive Roller
  • Designjet Encoder Strip Cleaning and inspection.
  • Inspect and Clean the HP plotter Platen Assembly.
  • Clean the entire HP Design Jet plotter/printer.
  • Calibrate the HP plotter print head after replacing the belt.
  • Calibrate the Color after the plotter service is performed.
  • HP designjet plotter quality test printout.

HP Designjet Z6100 44inch as Well as Z6100 60 Inch Plotter Numerical Error Code Repairs in Southern California!

We provide most models of HP DesignJet plotter repair with error code failures!

HP Design-Jet Z6100 plotter description HP Z6100 repair by models
HP Designjet Z6100 Repair (42″) Q6651A|Q6651AR
HP Designjet Z6100 Repair (60″) Q6652A|Q6652AR
HP Designjet Z6100PS Repair (42″) Q6653A|Q6653AR
HP Designjet Z6100PS Repair (60″) Q6654A|Q6654AR

HP Designjet Z6100 Maintenance Kit 1 Error Message on

The HP Z6100 has two maintenance kit intervals which are triggered by a certain number of carriage cycles or by a certain quantity of ink spitted into each spittoon. Once one of the maintenance advised messages is displayed the preventative maintenance kit must be used to replace the most worn parts of the printer. Preventative maintenance kit #1 contains: Encoder Strip, Carriage Assembly, Ink Supply Tubes and Trailing Cable, Scan-Axis Motor, Belt Assembly During the installation of the kit, the printer is full serviced & then calibrated to the customers satisfaction.

Designjet Z6100 Maintenance Kit 2 Error Code with Print Heads Banding!

Design Jet Z6100 plotter with banding in print heads. Our technicians inspected the HP Design Jet Z6100 printer during a repair and found that fan/filter unit which sits below the maintenance cartridge tray assembly unit was full of used ink from normal usage. Being full stops drawing all the vapors away from inside the HP Z6100 plotter and also takes part in taking used ink away from when primer cleans the print heads, the tray which holds the maintenance cartridge have holes which were blocked due to fan/filter assembly being full.

Designjet Z6100 Plotter a Guide to Error Codes

The Designjet Z6100 42” and 60”

Introduction The Basics System error codes are hexa-decimal based numbers generally caused by internal system errors.

Only try one recommended action at a time and check if the error code has disappeared. Some of the Error Codes are continuable, which means you can press Enter on the front-panel and continue working with the Printer.

HP Z6100 PLOTTER ERROR MESSAGES HP DESIGNJET Z6100 44-INCH Z6100ps 60-INCH PLOTTER ERROR CODES
Design Jet Z6100 Error 01.0:10 Main PCA hardware failure return to top of page.
DesignJet Z6100 Error 01.1:10 Print-Mechanism PCA hardware failure requests a service/repair estimate.
Design-Jet Z6100 Error 01.2:10 ISS Top PCA communication failure.
Design jet Z6100 Error 01.3:10 ISS Bottom PCA communication failure.
DesignJet Z6100 Error 02:10 There is no signal from the Scan Axis Encoder. Analytics: Scan axis encoder may be wrong. Try to replace it.
Design-Jet Z6100 Error02.1:10 Carriage PCA communication failure.
DesignJet Z6100 Error 03:10 Power distribution failure.
Design-Jet Z6100 Error 05:10 Formatter communication failure with ISS.
Design-Jet Z6100 Error 05.1:10 Formatter CPU fan stopped or burnt.
DesignJet Z6100 Error 06:03 Main NVM communication failure.
Design jet Z6100 Error 06:10 Main NVM communication failure.
Design-jet Z6100 Error 08:11 Front Panel communication failure.
Design jet Z6100 Error 11:10 Trailing Cable does not seem to be connected.
DesignJet Z6100 Error 17.0:11 Print Mach to Interconnect cable does not seem to be connected
Design Jet Z6100 Error 17.1:11 Print Mach to Interconnect Data 1 cable does not seem to be connected.
Design-jet Z6100 Error 17.2:11 Print Mach to Interconnect Data 2 cable does not seem to be connected.
DesignJet Z6100 Error 17.3:11 Main PCA to Print Mach Black 1 cable does not seem to be connected.
Design-Jet Z6100 Error 17.4:11 Main PCA to Print Mach Blue 2 cable does not seem to be connected.
Design Jet Z6100 Error 21:03 Service Station electrical current limit
Design Jet Z6100 Error 21:13 Service Station jam.
Designjet Z6100 Error 23:10 Air Pressurization System failure; unable to pressurize or depressurize tubes.
Design-jet Z6100 Error 24:03 Ink Supply Tubes purge failure.
Design Jet Z6100 Error 24:10 A broken bag has been detected in one of the ink Cartridges.
Design Jet Z6100 Error 24:11 Print Mach to ISS Top cable does not seem to be connected.
Designjet Z6100 Error 24.1:11 ISS Top to ISS Bottom cable does not seem to be connected.
Designjet Z6100 Error 26.0:01 Bad contact detected in ISS slot 0 floater.
Design jet Z6100 Error 26.1:01 Bad contact detected in ISS slot 1 floater.
Design-jet Z6100 Error 26.2:01 Bad contact detected in ISS slot 2 floater.
Designjet Z6100 Error 26.3:01 Bad contact detected in ISS slot 3 floater.
Design jet Z6100 Error 26.4:01 Bad contact detected in ISS slot 4 floater.
Designjet Z6100 Error 26.5:01 Bad contact detected in ISS slot 5 floater.
Design-jet Z6100 Error 26.6:01 Bad contact detected in ISS slot 6 floater.
Designjet Z6100 Error 26.7:01 Bad contact detected in ISS slot 7 floater.
Design jet Z6100 Error 27.1:01 Calibration failed due to poor performance of the Magenta/Yellow Print head in slot 1.
Designjet Z6100 Error 27.2:01 Calibration failed due to poor performance of the Magenta/Yellow Print head in slot 2.
Design-jet Z6100 Error 27.3:01 Calibration failed due to poor performance of the Light Cyan / Light Magenta Print head slot 3.
Designjet Z6100 Error 27.4:01 Calibration failed due to poor performance of the Light Cyan / Light Magenta Print head in slot 4.
Designjet Z6100 Error 27.5:01 Calibration failed due to poor performance of the Photo Black / Light Grey Print head in slot 5.
Designjet Z6100 Error 27.6:01 Calibration failed due to poor performance of the Photo Black / Light Grey Print head in slot 6.
Design Jet Z6100 Error 27.7:01 Calibration failed due to poor performance of the Matte Black / Red Print head in slot 7.
DesignJet Z6100 Error 27.8:01 Calibration failed due to poor performance of the Matte Black / Red Print head in slot 8.
Design-Jet Z6100 Error 28.1:01 Magenta / Yellow Print-head in slot 1 is deteriorating.
Design Jet Z6100 Error 28.2:01 Magenta / Yellow Print head in slot 2 is deteriorating.
Design Jet Z6100 Error 28.3:01 Light Cyan / Light Magenta Print-head in slot 3 is deteriorating.
Design-Jet Z6100 Error 28.4:01 Light Cyan / Light Magenta Print head in slot 4 is deteriorating.
Design Jet Z6100 Error 28.5:01 Photo Black / Light Grey Print-head in slot 5 is deteriorating.
Design Jet Z6100 Error 28.6:01 Photo Black / Light Grey Print-head in slot 6 is deteriorating.
Design Jet Z6100 Error 28.7:01 Matte Black / Red Print head in slot 7 is deteriorating
Design-jet Z6100 Error 28.8:01 Matte Black / Red Print-head in slot 8 is deteriorating
DesignJet Z6100 Error 28.1:02 Magenta / Yellow Print head in slot 1 nearing the end of it’s useful life.
Design Jet Z6100 Error 28.2:02 Magenta / Yellow Print head in slot 2 nearing the end of its useful life.
Design-jet Z6100 Error 28.3:02 Light Cyan / Light Magenta Print head in slot 3 nearing the end of it’s useful life.
Designjet Z6100 Error 28.4:02 Light Cyan / Light Magenta Print-head in slot 4 nearing the end of its useful life.
Designjet Z6100 Error 28.5:02 Photo Black / Light Grey Print head in slot 5 nearing the end of its useful life.
Designjet Z6100 Error 28.6:02 Photo Black / Light Grey Print head in slot 6 nearing the end of its useful life.
Designjet Z6100 Error 28.7:02 Matte Black / Red Print-head in slot 7 nearing the end of its useful life.
Designjet Z6100 Error 28.8:02 Matte Black / Red Print head in slot 8 near in the end of its useful life.
Design-jet Z6100 Error 29:00 Maintenance Cartridge almost full.
Design jet Z6100 Error 29:01 Maintenance Cartridge not inserted correctly.
Designjet Z6100 Error 29:02 Ink Absorber almost full.
Designjet Z6100 Error 32:01 Take-up Reel (TUR) communication failure.
Designjet Z6100 Error 32:01.1 Take-up Reel (TUR) early paper jam.
Designjet Z6100 Error 32:01.2 Take-up Reel (TUR) paper jam.
Designjet Z6100 Error 32:01.9 Take-up Reel (TUR) disabled because paper was removed unexpectedly.
Designjet Z6100 Error 32:02 Take-up Reel (TUR) not detected or disconnected while printer was off.
Designjet Z6100 Error 36.0:01 Duplexer communication error.
Designjet Z6100 Error 36.01:01 Duplexer paper skew error.
Designjet Z6100 Error 36.02:01 Duplexer paper incorrect lateral edge position.
Designjet Z6100 Error 36.03:01 Duplexer unable to detect paper.
Designjet Z6100 Error 36.1:01 Duplexer not ready for printing.
Designjet Z6100 Error 36.2:01 Duplexer internal error.
Designjet Z6100 Error 41:03 Paper motor electrical current limit.
Designjet Z6100 Error 42:03 Scan-Axis motor electrical current limit.
Designjet Z6100 Error 42:10 —The error points to the scan axis motor. What is probably happening is the printer is sensing too much resistance after it engages the cutter. It may be that the cutter is dragging and not running properly. Perform a manual form feed and cut through the paper menu and see what happens. If that causes a problem, then start by checking to see if the cutter is seating properly. It is probably cheaper to replace the cutter first, before trying to replace the scan axis motor.
— Look if the service station set right in the platen.
— The error code is with misplacement of carriage stopper on the right side of plotter. Refix the carriage stopper issue will get resolved. If not check with the latest firmware.
— The scan axis motor is faulty and needs to be replaced.
— Your problem can be a dirty encoder sensor in the carriage or the strip is damaged in the service station zone. Clean the encoder strip if you have not already. The problem with the cleaning cartridge detection came from is the line sensor. Can be dirty or damaged—check the bottom of the carriage.
Design-jet Z6100 Error 43:01 Vacuum Fan spinning at wrong speed.
Design jet Z6100 Error 43:10 Vacuum Fan failure.
Designjet Z6100 Error 43.1:10 Vacuum Driver PCA communication or hardware failure.
Design-jet Z6100 Error 43:11 Vacuum Fan PCA cable does not seem to be connected.
Design jet Z6100 Error 44.1:10 Left Aerosol Fan stopped.
Designjet Z6100 Error 44.2:10 Right Aerosol Fan stopped or spinning at lower speed.
Design-jet Z6100 Error 44.4:10 Right Aerosol Fan Filter blocked.
Design jet Z6100 Error 45:03 Rewinder servo shutdown.
Designjet Z6100 Error 46:03 Primer servo shutdown.
Design-jet Z6100 Error 46:13 Primer test distance failed.
Design jet Z6100 Error 50:03 OMAS fatal error or disconnected.
Designjet Z6100 Error 50.1:10 OMAS Module communication failure.
Design jet Z6100 Error 50:14 Firmware version mismatch between the OMAS Controller Card and Hard Disk Drive.
Designjet Z6100 Error 50.2:10 OMAS Controller Card communication failure.
Design-jet Z6100 Error 50.3:11 Main PCA to OMAS Controller cable does not seem to be connected.
Designjet Z6100 Error 51:10 Error detected in the Window Position Sensor.
Design jet Z6100 Error 51.1:10 Error detected in the Maintenance Cartridge Door Sensor (Service Station Door Sensor).
Design-jet Z6100 Error 52:10 Drop Detector switch On/Off failure.
Designjet Z6100 Error 53:10 Media Sensor error.
Design jet Z6100 Error 53.1:11 Media Sensor cable does not seem to be connected.
Design-jet Z6100 Error 54:10 Media Level Sensor error.
Designjet Z6100 Error 55:10 Line Sensor communication failure.
Design-jet Z6100 Error 56:01 Incorrect readings from paper encoder.
Designjet Z6100 Error 56:10 Paper Encoder calibration failed.
Designjet Z6100 Error 58:01 Embedded Photo Spectrometer (ESP) shutter error.
Designjet Z6100 Error 58:10 Embedded Photo Spectrometer (ESP) failure.
Designjet Z6100 Error 58.1:10 Embedded Photo Spectrometer (ESP) Shutter Actuator failure.
Design jet Z6100 Error 58.2:10 Embedded Photo Spectrometer (ESP) Shutter Deactivator failure.
Design-jet Z6100 Error 59.1:09 Two electrical parts have been replaced at the same time.
Designjet Z6100 Error 59.2:00 An unsupported or reused part has been installed.
Design jet Z6100 Error 60.1:11 Initialization error.
Design-jet Z6100 Error 60.2:17 Initialization error.
Designjet Z6100 Error 61:01 The file format is incorrect and the printer cannot process the job.
Designjet Z6100 Error 61:04.1 The PostScript fonts are missing.
Design jet Z6100 Error 61:04.2 PostScript unknown Paper ID.
Design-jet Z6100 Error 61:08 The paper type specified in the file is incorrect and the printer cannot process the job.
Designjet Z6100 Error 61:08.1 The file cannot be printed because it is password-protected.
Design jet Z6100 Error 61:08.2 The file contains format errors or incorrect settings and the printer cannot process the job.
Design-jet Z6100 Error 61:10 A slow computer processing complex files can pause for longer than the default printer timeout, which can be interpreted by the printer as an End Of Job, in which case some elements of the job may be lost.
Designjet Z6100 Error 64.1:01 The printer does not recognize the USB Hard Disk Drive accessory.
Design jet Z6100 Error 71:03 Out of memory failure.
Design-jet Z6100 Error 71:08 Insufficient display list.
Design jet Z6100 Error 74:01 Error uploading firmware update file.
Designjet Z6100 Error 75.21:10 Total printer ink consumption reached upper limit.
Design-jet Z6100 Error 76:03 Hard Disk Drive out of Space.
Design jet Z6100 Error 77:04 Embedded Web Server internal software error.
Design-jet Z6100 Error 78.1:04 Media Settings area missing in media settings file.
Designjet Z6100 Error 79:03 Generic firmware error.
Design jet Z6100 Error 79:04 Generic firmware error.
Design-jet Z6100 Error 79.2:04 Operating-system signal error.
Designjet Z6100 Error 81:01 Paper servo shutdown; possible paper jam.
Design jet Z6100 Error 85:03 Problem finding the Drive Roller zero.
Designjet Z6100 Error 86:01 Carriage servo shutdown; possible paper jam.
Analytics: Can be a bad the carriage belt, than replace it.
If no problem can be found proceed the Service Tests (Diagnostics): Scan Axis Test.
Design-jet Z6100 Error 86:11 Scan-Axis length requires too much force or energy.
Designjet Z6100 Error 87:01 Problem with the Scan Axis encoder sensor readings. Encoder strip can be dirty clean it.
Design jet Z6100 Error 87:10 Problem with the Carriage Encoder Sensor readings.
Design-jet Z6100 Error 94:01 The paper is not suitable for color calibration, being too dark (low L), or too colored (a or b above thresholds), or transparent.
Designjet Z6100 Error 94:02 Color calibration error, some of the consistency checks on the Embedded spectrophotometer (ESP) measurements failed, which could have several causes.
Designjet Z6100 Error 94:10 Embedded spectrophotometer (ESP) contaminated by aerosol.

Same-day On-site HP Designjet Z6100/z6100ps Plotter Belt Service!

We provide fast onsite HP Z6100/Z6100ps plotter repair/service with genuine HP Z6100 belt kit and lubrication with 6 months warranty. After we replace the belt kit we always lubricate the carriage rods to prolong the life of the new belt. The lubrication keeps the carriage assembly moving freely and avoid the belt to break prematurely.
We stock HP Design Jet Z6100 series carriages Belt Kits, Hard Disk, trailing cables, ink tubing systems, carriage assembly and print heads to provide you fast onsite plotter service in Southern California. Our HP Designjet repair team carry most common parts for HP design jet Z6100/Z6100ps series printer.

Fast Onsite HP Z6100 Design Jet Plotter Repair in Los Angeles as Well as Plotter Service Orange County!

We provide fast on-site Design jet Z6100/Z6100ps plotter repair, HP Z2100,Z3100, Z3200 plotter repair, Z5200 plotter repair, T1100, T1120, T610 plotter repair, T1200, T1300 repair, HP 1050C/1055CM plotter repair, 430/430C plotter repair, 450C/455C plotter repair, HP DJ 500/510 as well as 800/800ps plotter repair , design-jet 5000/5500 plotter repair, DJ 700/750C/755CM plotter repair, Design Jet 4000/4500/4520 plotter repair in Southern California.

Every Hewlett Packard Design Jet plotter repair includes inspection, cleaning and Lubrication. We replace HP Z6100 Carriage Assembly, Carriage Belt, Drive Belt, Encoder Strip, Trailing Cable, Service Station, Electronic Module, Hard disk, Motor, Power Supply Board, Main Logic Board to get you plotter working again.
