We repair/service Design-Jet Z5600 broken belt and service error code failure in Southern California near Los Angeles and Orange County!
Design Jet Z5600 plotter repair and onsite service in Los Angeles and Orange County with system errors, leaking ink, ink blotches, faint prints, printing light or faint prints and black comes out gray or green.
We offer HP Z5600 plotter repair with trailing cable error 11:11, service station error 21:10, encoder sensor failure 81:01, star wheel motor error 47:01, 47:03, broken carriage belt error 86:01 and print-head replacement error.
Is your Design-Jet Z5600 failing with an error code? We repair design Jet Z5600 system error codes 11:11, 21:10,21:13, 21.1:10, 22:10, 41:10, 47:01, 47:03, 79:04, 81:01, 86:01
Z5600 is designed for printing high-quality images on paper up to 610 mm (24 inch) wide and (44 inch)
Your Design Jet Z5600 printer is a color inkjet printer designed for printing high-quality images on paper up to 610 mm (24 in) wide
in the Z5600 printer, or up to 1118 mm (44 in) wide in the printer. Some major features of the printer are Shown below:
● Print resolution of up to 2400 × 1200 optimized dpi, from a 1200 × 1200 dpi input, using the Best print quality option, the Maximum Detail option and photo paper.

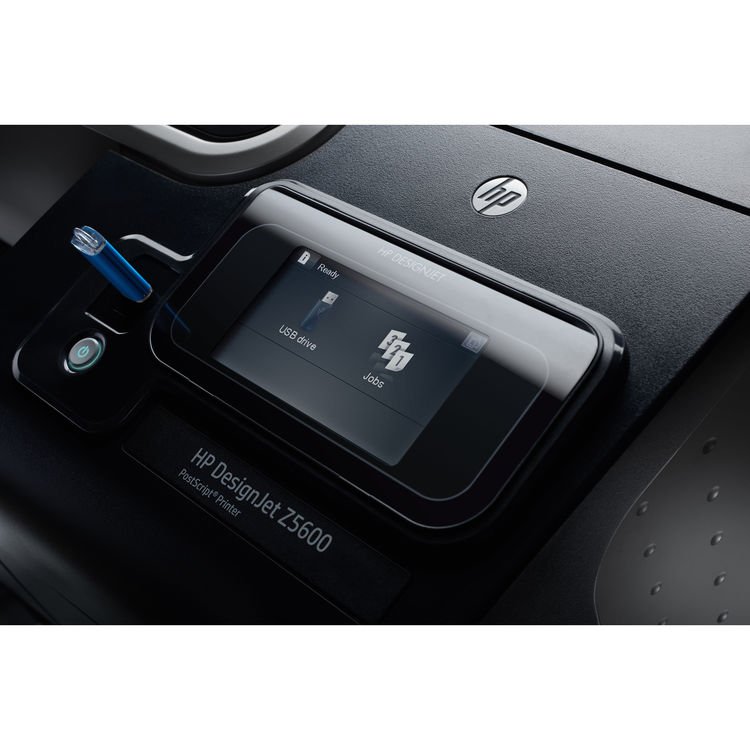

● The printer can be controlled from its front panel or from a remote computer using the Embedded Web Server or the HP DesignJet Utility
HP DesignJet Z5600 Click printing software
In one click⁴ you can print the most common formats from a PC or Mac to HP DesignJet Z-series printers.⁶ Cut media costs with automatic features like nesting and file error warnings.
HP ink and media
HP DesignJet printer ink and a wide range of printing materials help you deliver consistently high-quality prints the first time, every time.
Professional, high-definition prints with HP Vivid Photo Inks
Deliver high quality from amazing photos to high-definition prints using pigment-based HP Vivid Photo Inks with RGB colors.2 Original HP inks are designed to maximize the life of HP printheads and provide full HP warranty protection.

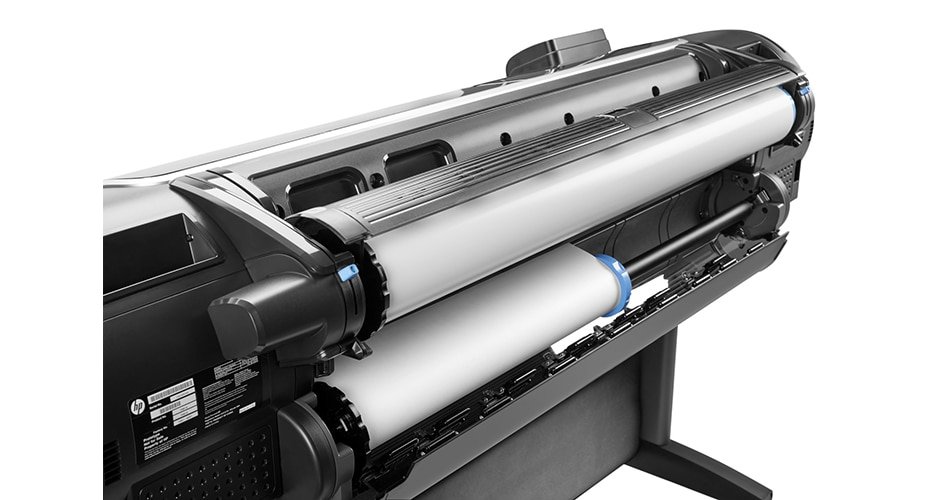

Simple, flexible operation. Automatic multi-roll printing boosts media loading efficiency up to 75%.² Print up to 39% faster³ with quick-drying HP inks. Enjoy easy one-click printing.⁴ PostScript® and broad RIP choice support color workflows.
Line drawings and maps
Communicate clearly with excellent image and line quality on all your prints from line drawings to satellite and aerial photos, maps, and more.
Utilities and infrastructures
Produce high-impact GIS applications with fine lines and Chromatic Red ink, from water-resistant, archivable CAD drawings to high definition GIS and satellite images.
Backlit for Retail POP
Produce vivid, eye-catching signs that attract customers quickly and easily.
Finishing large-format posters
Create poster hangers, presentation boards, photo frames and more.
Printing and assembling a roll-up banner stand
Learn to produce versatile, high-quality roll-up banners.
Creating backlit applications
Impress customers with backlit applications.
We offer system error code repair on Z5600 plotters!
|HP Z5600/Z5600PS ERROR MESSAGES||HP DESIGN JET Z5600/Z5600PS PLOTTER REPAIR DESCRIPTION|
|01.0, 01.1, 01.3||Restart the Z5600 plotter|
|06:03||Restart the Z5600 plotter/printer|
|08:04||Restart the printer. If the problem persists, update the printer’s firmware.|
|08:08||Retry the operation that you were attempting. If it fails again, restart the printer. If the problem persists, update the printer’s firmware.
|21, 21.1, 21:03, 21.1:03, 21:13, 21.2:13, 22.0, 22.1, 22.2, 22.3, 22.x:03, 24||Restart the Z5600 plotter|
|26:01, 26.x:01||Bad contact detected in an ink cartridge (if present, x refers to the cartridge in slot x). Remove and reinsert the cartridge. If necessary, insert a new cartridge.|
|26:14||Update your printer’s firmware. See update the firmware update the firmware.|
|27:01, 27.x:01||Too many printhead nozzles are not working (if present, x refers to the printhead in slot x). Remove and reinsert the printhead, or try cleaning the electrical connections. If necessry, insert a new printhead.
|27:03||Printhead error. Restart the Z5200 printer.|
|27:14||Update your printer’s firmware. See Update the firmware|
|31:03, 41:03, 42:03, 45.1:03, 45.2:03, 47:03, 56:03||Restart the Z5600 plotter|
|6161:04.1, 61:04.2:01||The file format is wrong and the printer cannot process the job. If the job is password-protected, try sending it without password protection. Otherwise, update your printer’s firmware and try again.
|61:04.1, 61:04.2|| Update your printer’s firmware. See Update the firmware
|61:08.1||Resend the job without password protection.|
|66:08||The job cannot be printed on the paper type that is loaded.|
|68:03||Restart the printer.|
|71:04||Z5600 plotter Out of memory.|
|74.1||Try the firmware update again. Do not try to use your computer while the update is in progress.|
|74.8:04||The firmware update has failed. Your firmware file may be incorrect; try to download it again.|
|76:03||Restart the plotter|
|77:04, 78.1:04|| Update your printer’s firmware. See update the firmware
|78:08||Borderless printing not possible; setting ignored.|
|79:03||Restart the printer.|
|79:04, 79.1:04||Update your printer’s firmware. See update the firmware and update the firmware.|
|81:01||Please follow the instructions on the front panel. You may be asked to run a test procedure and write down a numeric code before contacting HP Support.|
|81:03, 84:03||Restart the printer.|
|86:01||Please follow the instructions on the front panel. You may be asked to run a test procedure and write down a numeric code before contacting HP Support.|
|94, 94.1, 94:08||Restart color calibration. See color calibration
|94:02||Color calibration failed. Check that the paper type that is loaded corresponds to the paper type that you have selected.|
|[Color] cartridge altered||Check the cartridge.|
|[Color] cartridge has expired||Replace the cartridge. See Handling ink cartridges and print heads Handling ink cartridges and printheads.|
|[Color] cartridge is low on ink||Ensure that you have a new cartridge of the same color ready.|
|Color cartridge is missing||Insert a cartridge of the correct color. See Handling ink cartridges and print heads|
|[Color] cartridge is out of ink||Replace the cartridge. See Handling ink cartridges and print heads.|
|Color Cartridge is very low in ink||Ensure that you have a new cartridge of the same color ready.|
|[Color] print-head #[n] error: not present||Insert the correct print-head. See Handling ink cartridges and print-heads.|
|[Color] printhead #[n] error: please remove||Remove the incorrect printhead and insert a new printhead of the correct type (color and number). See Handling ink cartridges and printheads.|
|[Color] printhead #[n] error: replace||Remove the non-functional printhead and insert a new printhead of the correct type (color and number).
|Color printhead #[n] error: reseat|| Remove and reinsert the same printhead, or try cleaning the electrical connections. If necessary, insert a new printhead.
|Cutter replacement advised||Contact HP Support to replace the cutter. See Contact HP Support.|
|Job queue notification||Cancel, resume or delete the job. See Job queue management.|
|Maintenance #1 advised|| Contact HP Support. See Contact HP Support.
|Maintenance #2 advised||Contact HP Support. See Contact HP Support .|
|Paper loaded incorrectly: remove paper||Remove the paper and try to reload it.|
|Paper mispositioned: remove paper roll||Remove the paper and try to reload it.|
|Paper path error: incorrectly loaded||Unload and reload the paper.|
|Paper path error: misaligned||Unload and reload the paper.|
|Printhead replacement incomplete. Restart it.||Restart the printhead replacement process.|
|Printheads need individual testing. Do replacement||Check the printheads using the Image Diagnostics Print and replace any that are not working correctly.|
|Replace [color] cartridge||Replace the cartridge. See Handling ink cartridges and printheads.|
|Reseat [color] cartridge|| Remove and reinsert the same cartridge.
