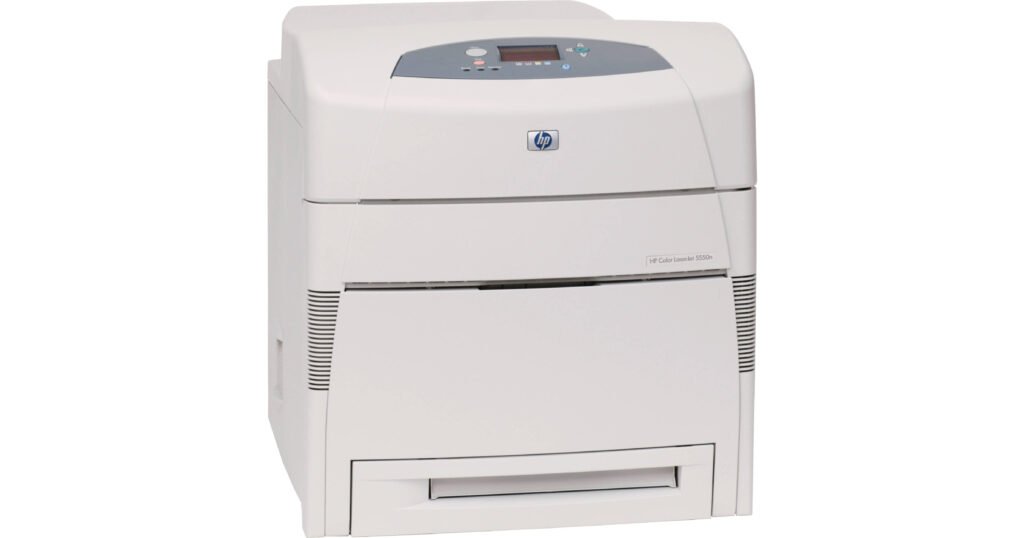

HP LaserJet 5500n, 5500dn and HP 5500/5500hdn printer repair in Southern California!
We provide fast on-site HP color LaserJet 5500 printer repair and HP Color 5500n service with error codes in Los Angeles, Orange County, Riverside and San Bernardino. We specialize on HP Color LaserJet 5500 printer repair with image defects, vertical lines, horizontal lines, repeating dots, error messages, maintenance errors. Our technicians have the knowledge and technical ability to repair HP Color Laser-Jet 5500 printers on the first visit.
We provide 6 months warranty on every Hewlett Packard Color LaserJet 5500 printer repair/service. Our onsite Color LJ 5500 printer repair includes a free cleaning by HP Authorized technicians. Our HPCLJ 5500 service technicians carry most common repair parts to fix ALL HP printer hardware malfunctions and numerical error code. We carry Genuine HP Color LaserJet Transfer Kit C9734B and fuser kit C9735A fast onsite hp printer repair.
We offer fast on-site HP Color LaserJet 5500 multiple printer repair discount in Southern California. Our technicians carry Genuine HP Color LaserJet 5500 Maintenance Kit C9735A and fuser units. We fix HP Color Laser Jet 5500 printers failing with 13.0A jam in the top cover area, 13.01.00/13.02.00 paper jam in the tray, 13.05.00/13.21.00 paper jam in the paper path, 13.09.00 jam in the top cover area and 13.12.00 paper jam in the duplex path. We stock HP laserjet 5500 optional 500 Sheet Feeder and Tray C7130A.
HP Color LaserJet 5500 prints up to 21 ppm on regular size paper, it prints 13000 pages using the Black toner and 12000 pages with each color toner cartridges!
Laser Printer Services sells original HP Color laser-jet black toner cartridge (C9730A), HP cyan toner cartridge (C9731A), HP yellow toner cartridge (C9732A) and HP Magenta toner cartridge (C9733A)
HP Color LaserJet Printer repair/service in Los Angeles as well as Orange County!
High-speed, wide-format color laser printing to your office workgroup with the affordable HP Color LaserJet 5500 series printers. Easy to use and flexible to fit any office, these printers create high-quality color documents as quickly as black-and-white. Designed for simplicity, this printer series is as easy to use and maintain as any HP LaserJet monochrome printer, and can be upgraded for robust networking and increased media flexibility.
Whether printing brochures or spreadsheets, newsletters or business presentations, with the HP Color LaserJet 5500 series printers you are guaranteed high-quality documents while meeting all your time-critical deadlines through in-house printing. Featuring inline-printing technology – using a “direct to page process” – the HP Color LaserJet 5500 series transfers toner directly to your media ensuring exceptional print quality and color printing at the same speed as black. And with best-in-class HP Jetdirect wired and wireless print servers, the printers can be placed anywhere in networked offices so that entire workgroups can access fast, wide-format color printing.
| HP CPL 5500 Features | HP 5500 Characteristics |
|---|---|
| HP 5500 Performance | 21 pages per minute (ppm) Prints on Color LaserJet transparencies and glossy paper |
| HP Color LaserJet 5500 User interface |
|
| HP 5500 Supported printer personalities |
|
| Color 5500 Storage features |
|
| LaserJet 5500 Environmental features |
|
| HP Laser-Jet 5500 Fonts |
|
| HP CLJ 5500 Paper handling |
|
| HP 5500 Connectivity |
|
| Printer Models | HP Color 5500 Printer Description |
|---|---|
| HP Color LaserJet 5500 C9656A | Base model Hp Color Laser Jet 5500 printer |
| HP Color LaserJet 5500DN C9657A | Base model HP color laser 5500dn plus HP Jetdirect EIO internal print server for Fast Ethernet 10/100Base-TX, automatic two-sided printing |
| HP Color LaserJet 5500HDN C9658A | Base model HP CLJ 5500dtn with 160 MB of SDRAM, plus HP Jetdirect EIO internal print server for Fast Ethernet 10/100Base-TX, automatic two-sided printing, additional 500-sheet input tray, stand |
| HP Color LaserJet 5500HDN C9659A | Base model with 160 MB of SDRAM, plus HP Jetdirect EIO internal print server for Fast Ethernet 10/100Base-TX, automatic two-sided printing, three 500-sheet input tray, stand, hard disk |
| HP Color LaserJet 5500N C7131A | Base model plus HP Jetdirect EIO internal print server for Fast Ethernet 10/100Base-TX |
HP CLJ 5500 printer failures with service error codes!
HP Color LaserJet 5500 10.00. YY SUPPLIES ERROR alternates with FOR HELP PRESS? Possible printer control panel message
HP 5500 10.00.00 – The printer cannot read or write to the black print cartridge memory tag.
HP laserjet 5500 10.00.01 – The printer cannot read or write to the cyan print cartridge memory tag.
HP color laser 5500 10.00.02 – The printer cannot read or write to the magenta print cartridge memory tag.
10.00.03 – The printer cannot read or write to the yellow print cartridge memory tag.
HP CLJ 5500 error 10.10. YY SUPPLIES ERROR alternates with FOR HELP PRESS? Possible printer control panel error message
10.10.00 – The printer cannot read or write to the black print cartridge memory tag, or the memory tag is missing.
HP 5500 error 10.10.01 – The printer cannot read or write to the cyan print cartridge memory tag, or the memory tag is missing.
HP laserjet 5500 error 10.10.02 – The printer cannot read or write to the magenta print cartridge memory tag, or the memory tag is missing.
HP color LaserJet 5500 error 10.10.03 – The printer cannot read or write to the yellow print cartridge memory tag, or the memory tag is missing.
HP LaserJet 5500 Error 10.30.00 SUPPLIES ERROR alternates with FOR HELP PRESS? Non-HP black print cartridge installed
10.30.01 SUPPLIES ERROR alternates with FOR HELP PRESS? Non-HP cyan print cartridge installed.
HP color 5500 10.30.02 SUPPLIES ERROR alternates with FOR HELP PRESS? Non-HP magenta print cartridge installed.
LaserJet 5500 error 10.30.03 SUPPLIES ERROR alternates with FOR HELP PRESS? Non-HP yellow print cartridge installed
HP Color LaseerJet 5500 error 13.0A JAM IN TOP COVER AREA During a duplex print job, media was delayed in the output bin before it entered the duplex path.
HP color 5500 error 13.01.00 JAM IN TRAY X alternates with FOR HELP PRESS? Paper is delayed in the feed area of the specified tray (x).
HP 5500 Error 13.02.00 JAM IN TRAY X alternates with FOR HELP PRESS? Paper is stuck in the feed area of the specified tray (x).
HP laserjet 5500 error 13.05.00 JAM IN PAPER PATH X alternates with FOR HELP PRESS? Paper is delayed in the paper input path or has not reached the fuser paper sensor in the expected time.
HP laserjet 5500 error 13.09.00 JAM IN TOP COVER AREA X alternates with FOR HELP PRESS? Paper has jammed or crumpled into an accordion fold as it enters the fuser.
HP 5500 error 13.12.00 JAM IN DUPLEX PATH X alternates with FOR HELP PRESS? During an automatic two-sided (duplex) print job, paper was removed from the output bin before it entered the duplex path, or paper has entered the duplex path, but it is stuck.
HP laserjet 5500 error 13.21.00 JAM IN PAPER PATH X alternates with FOR HELP PRESS? One of the covers is not completely closed. Be sure both covers are closed before printing.
20 INSUFFICIENT MEMORY alternates with TO CONTINUE PRESS The printer has received more data from the computer than fits in available memory.
22 EIO 1 BUFFER OVERFLOW alternates with TO CONTINUE PRESS Too much data was sent to the EIO card in EIO Slot 1. An improper communications protocol might be in use.
22 EIO 2 BUFFER OVERFLOW alternates with TO CONTINUE PRESS Too much data was sent to the EIO card in Slot 2. An improper communications protocol might be in use.
22 PARALLEL I/O BUFFER OVERFLOW alternates with TO CONTINUE PRESS Too much data was sent to the parallel port.
22 SERIAL I/O BUFFER OVERFLOW alternates with TO CONTINUE PRESS Too much data was sent to the serial port.
40 BAD SERIAL TRANSMISSION alternates with TO CONTINUE PRESS An error (parity, framing, or line overrun) occurred while data was being sent to the serial port.
40 EIO 1 BAD TRANSMISSION alternates with TO CONTINUE PRESS A connection with the card in EIO Slot 1 has been abnormally broken.
40 EIO 2 BAD TRANSMISSION alternates with TO CONTINUE PRESS A connection with the card in EIO Slot 2 has been abnormally broken.
HP CLJ 5500 ERROR 41.3 UNEXPECTED SIZE IN TRAY XX FOR HELP PRESS? Alternates with LOAD TRAY XX: Paper is loaded that is longer or shorter in the feed direction than the size configured for the tray.
HP COLOR LASERJET 5500 ERROR 41.5 UNEXPECTED TYPE IN TRAY XX FOR HELP PRESS? Alternates with LOAD TRAY XX: The printer senses a different paper or print media type in the paper path than configured in the tray. 41. X PRINTER ERROR FOR HELP PRESS? Alternates with TO CONTINUE PRESS (Select) A printer error has occurred.
Possible printer control panel error message: 41.1 unknown misprint error, 41.2 beam detect misprint error, 41.3 media feed error (size), 41.4 No VSYNC error, 41.5 media feed error (type), 41.6 ETB detection error, 41.7 feed delay error, 41.9 noise VSREQ
HP LASERJET 5500 ERROR 49. XXXX PRINTER ERROR HP CLJ 5500 49 errors are generally communication errors or file related issues and can usually be resolved by following the steps below:
| Error message | Description for specific 50.X errors |
|---|---|
| HP 5500 50.1 error | A low fuser temperature error has occurred, possibly due to an inadequate external or internal power supply. |
| 5500 50.2 error | A fuser warm-up service error has occurred, possibly due to an inadequate external or internal power supply. |
| HP 5500 50.3 error | A high fuser temperature error has occurred, possibly due to an inadequate external or internal power supply. |
| HP 5500 50.4 error | A faulty fuser error has occurred. There may be a problem with the printer’s fuser, or inadequate external or internal power supply/line voltage. |
| LaserJet 5500 50.5 error | An inconsistent fuser error has occurred, possibly due to an inadequate external or internal power supply/line voltage. |
| HP 5500 50.6 error | An open fuser error has occurred. |
LASERJET 5500 ERROR 51. XY PRINTER ERROR FOR HELP PRESS? Alternates with TO CONTINUE TURN OFF THEN ON Possible printer control panel error messages 51.10, 51.20, 51.1K, 51.2K, 51.1C, 51.2C, 51.1M, 51.2M, 51.1Y, 51.2Y
LASERJET 5500 ERROR 52. XY PRINTER ERROR FOR HELP PRESS? Alternates with TO CONTINUE TURN OFF THEN ON Possible printer control panel error message
52.10, 52.20, 52.1K, 52.2K, 52.1C, 52.2C, 52.1M, 52.2M, 52.1Y, 52.2Y
LASERJET 5500 ERROR 53.10.05 PRINTER ERROR alternates with TO CONTINUE TURN OFF THEN ON A DIMM is installed in both 168-pin DIMM Slot J4 (as labeled on the formatter board) and 100-pin DIMM Slot J5 (as labeled on the formatter board). This is an invalid configuration. DIMMs cannot be installed in both of these slots at the same time.
53.11. YY PRINTER ERROR alternates with TO CONTINUE PRESS CANCEL JOB Possible printer control panel error message:
53.11.00, 53.11.01, 53.11.02, 53.11.03, 53.11.04, 53.11.05 An error occurred with the printer’s memory in DIMM Slot J1 (as labeled on the formatter board). This may be unsupported memory.
53.13. YY PRINTER ERROR TO CONTINUE PRESS CANCEL JOB Possible printer control panel error message:
53.13.00, 53.13.01, 53.13.02, 53.13.03, 53.13.04, 53.13.05 An error occurred with the printer’s memory in DIMM Slot J3 (as labeled on the formatter board). This may be unsupported memory.
53.14. YY PRINTER ERROR alternates with TO CONTINUE PRESS CANCEL JOB Possible printer control panel error message:
53.14.00, 53.14.01, 53.14.02, 53.14.03, 53.14.04, 53.14.05 An error occurred with the printer’s memory in DIMM Slot J4 (as labeled on the formatter board). This may be unsupported memory
53. X0.ZZ PRINTER ERROR alternates with TO CONTINUE TURN OFF THEN ON An error has occurred in the onboard RAM.
54.1 PRINTER ERROR A low fuser temperature error has occurred.
54.3 PRINTER ERROR There is a problem with the Image Density Sensor.
54.4 PRINTER ERROR There is a problem with the Waste toner sensor.
54.5 PRINTER ERROR or 54.20 PRINTER ERROR There is a problem with the Color Plane Registration Sensor
54.6 PRINTER ERROR There is a problem with the Overhead Transparency (OHT) Sensor
54.7 PRINTER ERROR There is a problem with the yellow drum home position sensor.
54.8 PRINTER ERROR There is a problem with the magenta drum home position sensor.
54.9 PRINTER ERROR There is a problem with the cyan drum home position sensor.
54.10 PRINTER ERROR There is a problem with the black drum home position sensor.
54.11 PRINTER ERROR There is a problem with the yellow density sensor.
54.12 PRINTER ERROR There is a problem with the magenta density sensor.
54.13 PRINTER ERROR There is a problem with the cyan density sensor.
54.14 PRINTER ERROR There is a problem with the black density sensor.
54.19 PRINTER ERROR There is a problem with the Electrostatic Transport Belt (ETB) speed control sensor.
54.21 PRINTER ERROR Yellow Toner Remaining Sensor, 54.22 PRINTER ERROR Magenta toner Remaining Sensor, 54.23 PRINTER ERROR Cyan Toner Remaining Sensor,
54.24 PRINTER ERROR Black Toner Remaining Sensor There is a problem with the toner level sensors. The specific 54.2X corresponds with a specific print cartridge. See below:
55. x PRINTER ERROR alternates with TO CONTINUE PRESS The DC Controller is not communicating with the formatter. The problem could be caused by a timing error or an intermittent connection.
57.3 PRINTER ERROR alternates with TO CONTINUE TURN OFF AND ON A printer fan error has occurred with the cartridge fan (vertical fan)
57.4 PRINTER ERROR alternates with TO CONTINUE TURN OFF AND ON A printer fan error has occurred with the formatter fan (horizontal fan)
57.7 PRINTER ERROR alternates with TO CONTINUE TURN OFF AND ON A printer fan error has occurred with the power supply fan
58.3 PRINTER ERROR FOR HELP PRESS alternates with TO CONTINUE TURN OFF THEN ON A CPU error reading a memory tag was detected.
58.4 PRINTER ERROR FOR HELP PRESS alternates with TO CONTINUE TURN OFF THEN ON A power supply error while reading a memory tag was detected.
59.XY PRINTER ERROR FOR HELP PRESS? Alternates with TO CONTINUE TURN OFF THEN ON Possible printer control panel error message: A printer motor error has occurred. This message might also appear if the ETB is missing or incorrectly installed. Ensure that the ETB is installed correctly.
62 NO SYSTEM alternates with TO CONTINUE TURN OFF THEN ON No system was found. Indicates there is a printer firmware problem. Either there is no firmware DIMM installed or the DIMM has failed.
64 PRINTER ERROR FOR HELP PRESS? Alternates with TO CONTINUE TURN OFF THEN ON A scan-buffer error occurred.
68.0 PERMANENT STORAGE ERROR FOR HELP PRESS? Alternates with TO CONTINUE PRESS One or more settings saved in the onboard NVRAM have been reset to the factory defaults.
68.0 PERMANENT STORAGE FULL FOR HELP PRESS? Alternates with TO CONTINUE PRESS The NVRAM storage device is full.
68.0 PERMANENT STORAGE WRITE FAIL alternates with TO CONTINUE PRESS The NVRAM storage device is failing to write.
68.1 PERMANENT STORAGE ERROR FOR HELP PRESS? Alternates with TO CONTINUE PRESS One or more settings saved on the flash dimm or hard disk has changed or is invalid.
68.1 PERMANENT STORAGE FULL FOR HELP PRESS? Alternates with TO CONTINUE PRESS The flash dimm or hard disk storage device is full.
68.1 PERMANENT STORAGE WRITE FAIL alternates with TO CONTINUE PRESS The flash dimm or hard disk storage device is failing to write.
79 PRINTER ERROR alternates with TO CONTINUE TURN PRINTER OFF THEN TURN ON A critical error has occurred. This error could be the result of a hardware failure, or there could be a problem with communication or corrupt data. Each of the following steps is intended to determine whether the 79 error displayed on the printer is the result of a hardware failure. To ensure the tests are valid, turn the printer on between steps to determine if the error message has been cleared.
81 EIO ERROR The EIO accessory card in EIO Slot 1 has encountered a critical error.
82 EIO ERROR The EIO accessory card in EIO Slot 2 has encountered a critical error.
| HP 5500 PARTS DESCRIPTION | HP Color 5500 PART NUMBER |
|---|---|
| HP Color LaserJet 5500 Fusing Assembly/ 110V fuser unit | RG5-6848 |
| HP Color LaserJet 5500 Fuser Maintenance Kit | C9735A |
| HP color laserjet 5500 Paper Cassette Assy | RG5-6647 |
| Tray 1 Pickup Roller | RG9-1529 |
| Tray 1 Separation Pad | RF5-3865 |
| Interlock Lever | RB2-9358 |
| Laser Scanner Assembly | RG5-6736 |
| DC Controller | C9656-67901 |
| Pickup Assembly | RG5-6670 |
| Jet Direct Card (610N) | J3113A |
| Formatter PCA Q3713-67926 | C9661-67902 |
| Tray 2 & 3 Pickup Rollers | RF5-3340 |
| Tray 2 & 3 Feed Separation Roller | RG5-3338 |
| Low Voltage Power Supply | RG5-6410 |
| High Voltage Power Supply | RG5-6395 |
| 610n HP Jet Direct Card (610N) | J3113A |
| 620n HP Jet Direct Card (620N) | J7934A |
| 625n HP Jet Direct Card (625N) | J7960A |
| Transfer Kit | C9734A |
Same-day on-site Color LaserJet rrinter repair in Southern California!
